I. Device Installation:
The supplier's engineers provide overseas commissioning, installation and training services free of charge to ensure that the machine is operating normally.
II. After-sales maintenance:
If the machine has quality or system software problems within 12 months after the test is accepted, we will replace or repair it free of charge. After the warranty period, materials, maintenance fees, travel expenses for personnel, and lifetime technical services will be provided.
III. After-sales training:
Our company provides free on-site technical training (trainees: 3-5; time: 2-3 days; location: customer site; training content: equipment operation, maintenance and repair and other related knowledge matters).

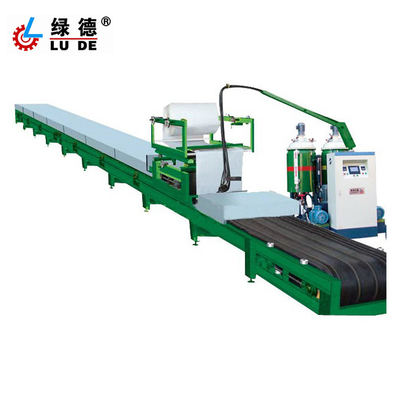

Sandwich Panel foaming machine :
Product Purpose: color steel tile, moveable plate, pu products for heat preservation, pu sheet, pu clad plate.
Product Characteristics:
Main unit: Material injection by a precision needlevalve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclsively adopted); single button operation for convenient operation; switching to a different density or color at any time; easy to maintain and operate.
Control: Microcomputer PLC control; TIAN electrical components exclsively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotatin rate digital tracking and display and automatic control; abnormity or fault alam devices. Imported frequency converter (PLC) can control the proportion of 8 different products.
Parameter:
Item No. | GL-908 color steel plate foaming machine |
Power supply | All power of the machine 15KW,4*380V/60HZ |
The type of applicable foam | Rigid foam, or semi-rigid foaming, ect. |
Flux of injection | 60g-150g/S(Att:the flux can be configured) |
Press of injectiong | 0.1MPA-3.99MPA |
Ratio of Mixing | 100-60;100-120 |
Viscosity (22°) | POLY (polyethylene) 500-2000MPAS |
Viscosity (22°) | ISO( polyisocyanates)500-2000MPAS |
Time of injecting | Continuous |
Precision of injecting | 0.1/100 |
Pneumatic Pressure | 0.6-0.8MPa |
Dimensions of Machine | Width: 2.3M; Height:2.6M;Length:3.5M |
Gross weight of machine | 1.5 ton |
Pouring Nozzle | Pour plug |
Heating system | The temperature can be controlled automatically. |
