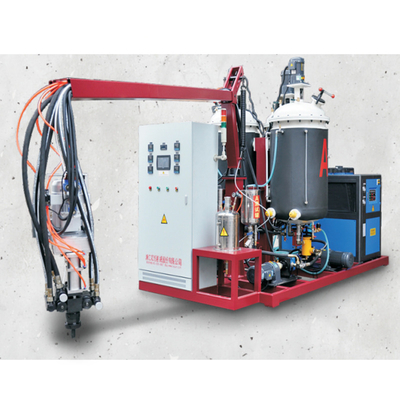

Polyurethane Products Produce Flexible PU Foam Making Machine /Pu Flexible Foam Machine /Polyurethane Flexible Foam Machine

Technical Parameter:
Injection output: 2-6000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:30-200
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-25KW
Color( customizable): White/Red/Blue
Weight: 1000Kg-1500Kg
Dimension: 3200(L)*1650(W)*2650(H)mm

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Application Cases :
Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, sole etc.

Our company:

Part of PU Products can be made by our machines:

Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
