Equipment Description:

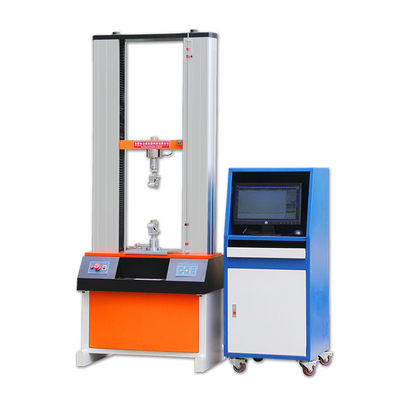

UTM Desktop Type Computer Universal iso 13935-2 Textile cloth Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine ismainly applied to test the non-metallic and metallic materials which the load is less than 1ton.
Main Functions:
UTM Desktop Type Computer Universal iso 13935-2 Textile cloth Testing Machine is applied to test the flexible material with large deformation. such as rubber, plastics, leatherand others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing largedeformation of materials.
Technical Parameter:
| Model | HZ-1003A |
| Max load | 5KN, 10kN, 20kN, (option) |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000 |
| Load sensor | Basic configuration:sensor(max load): one |
| Extended configuration: can add more sensors | |
| Effective testing width | 390mm (or customize) |
| Effective Tensile stroke | 800mm; |
| Range of testing speed | 0.001~200mm/min ; 500mm/min (1000mm/min for customize) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control, can jog |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 80x55x220cm(length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depends on the force) |
| Machine weight | about 250 Kg |
| Units | Kg,N,LB, TON can be exchanged. |
