ITEM | DESCRIPTION |
Brand Name | RIGHT |
Model Number | RT-205 |

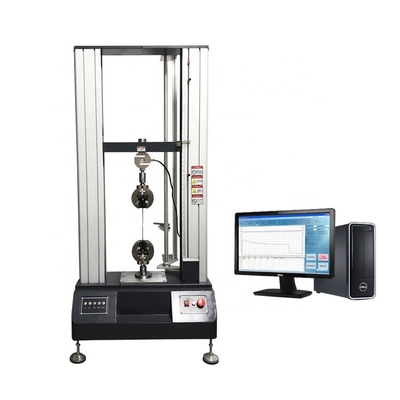

Product name | Universal Tensile Compression Strength Testing Machine |
Maximum load | 50KN |
Accurate grade | 1 % /0.5 % |
Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
Measuring accuracy | the value ±1% / the value ±0.5% |
Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
Load sensor | Basic configuration sensor(max load): 1 piece Extended configuration sensor: 1 piece |
Effective tensile stoke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
Testing speed | 0.001~200mm/min |
Accuracy of displacement measurement | Tolerance:±0.5% / tolerance: ±0.2% |
Safety | Electronic-limit protection |
Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
Overload protection | Overload 10%, automatic protection |
Deformation of measured system(according to the requirements) | Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation:5mm,10mm,25mm |
Fixture | A set of tensile clamp |
Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
Unit | KG,N,LB, TON can be exchanged. |
Power supply | 220V , 50HZ or according to the requirement |
Machine size | 107*56*210cm(length*width*height) |
Machine weight | （about）320 Kg |
